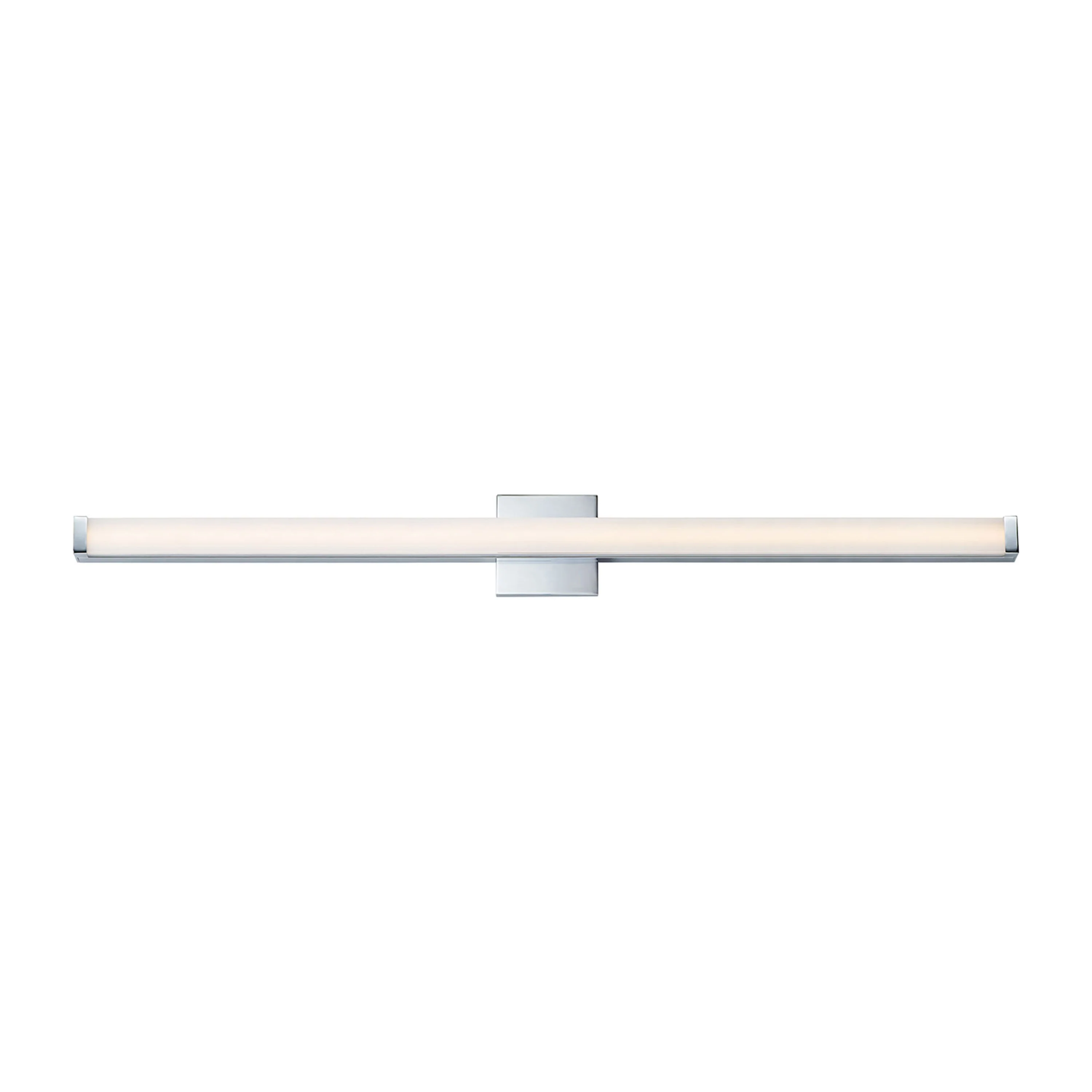

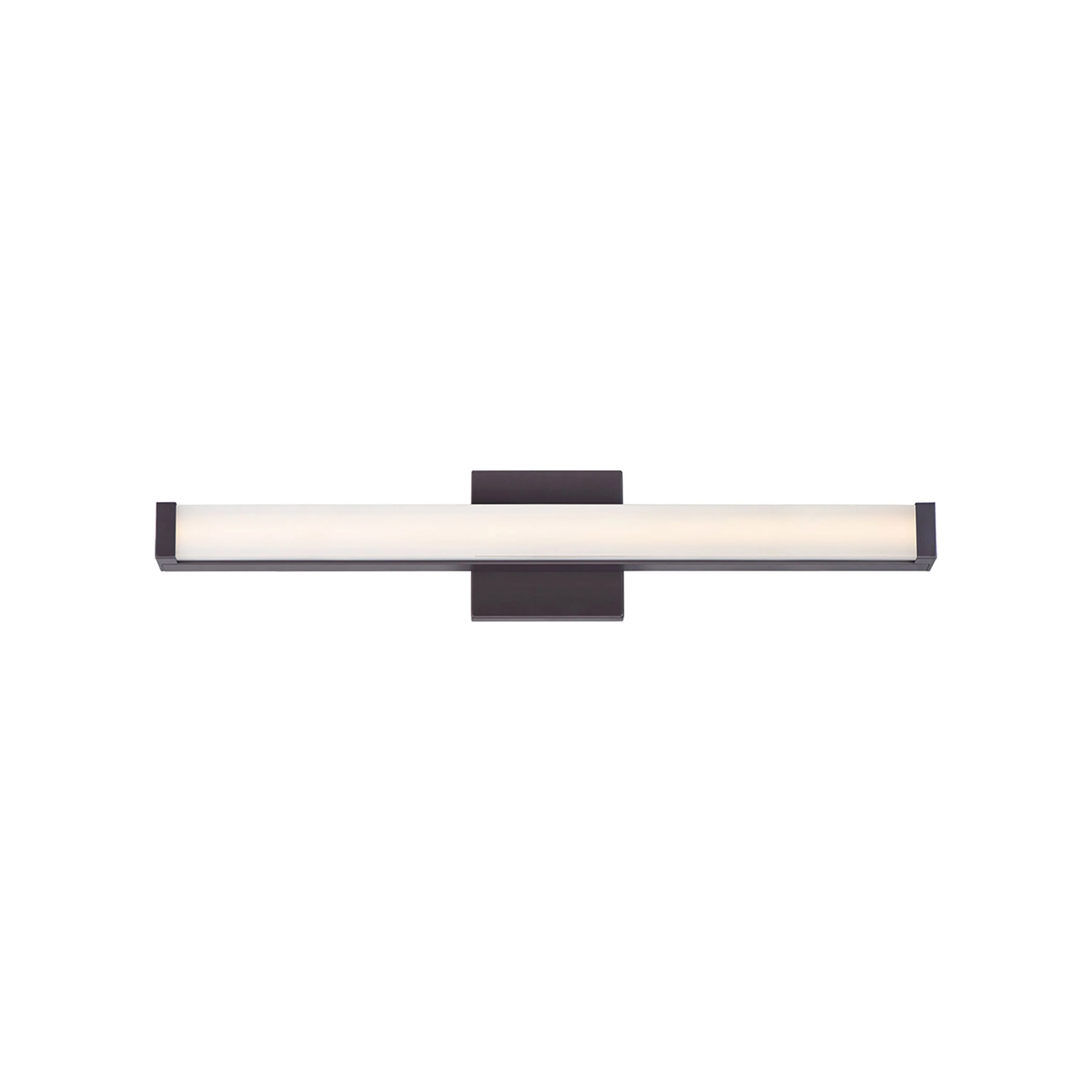

Spec LED Bath Vanity Light

Overview

This minimalistic contemporary approach to LED vanity lighting will be the standard for both residential and commercial applications. The light engine features a high quality dimmable driver with multi volt input and high color rendering LEDs for the ultimate vanity lighting.

Product Features:

• Collection: Spec
• Country of Origin: China
• Warranty: 5-Year
• Dimming: Only at 120V with ELV
• ADA Compliant
• Title 24 Compliant
• Energy Star
• Available in various finishes, widths and color temperatures

NOTE: Select SKU(s) are on Display at our San Francisco Showroom.

Dimensions:

18-Inch

• 3000K: 18"W X 1.75"H; 2.25" Extension
• Backplate: 4.75"W X 4.75"H
  Product Weight: 1.71 lbs

• 3 Selectable CCT: 18"W X 4.75"H; 2.75" Extension
• Backplate: 4.75"W X 4.75"H
  Product Weight: 1.85 lbs

• 5 Selectable CCT: 18"W X 4.75"H; 2.75" Extension
• Backplate: 4.75"W X 1.1"H
  Product Weight: 16.09 lbs

24-Inch

• 3000K: 24"W X 1.75"H; 2.25" Extension
• Backplate: 4.75"W X 4.75"H
  Product Weight: 2.04 lbs

• 3 Selectable CCT: 24"W X 1.75"H; 2.75" Extension
• Backplate: 4.75"W X 4.75"H
  Product Weight: 1.85 lbs

• 5 Selectable CCT: 24"W X 4.75"H; 2.75" Extension
• Backplate: 4.75"W X 1.1"H
  Product Weight: 18.96 lbs

30-Inch

• 3000K: 30"W X 1.75"H; 2.25" Extension
• Backplate: 4.75"W X 4.75"H
  Product Weight: 2.31 lbs

• 3 Selectable CCT: 30"W X 4.75"H; 2.75" Extension
• Backplate: 4.75"W X 4.75"H
  Product Weight: 2.42 lbs

• 5 Selectable CCT: 30"W X 4.75"H; 2.75" Extension
• Backplate: 4.75"W X 1.1"H
  Product Weight: 23.15 lbs

36-Inch

• Dimensions: 36"W X 1.75"H; 2.25" Extension
• Backplate: 4.75"W X 4.75"H
  Product Weight: 2.76 lbs

48-Inch

• Dimensions: 48"W X 1.75"H; 2.25" Extension
• Backplate: 4.75"W X 4.75"H
  Product Weight: 3.75 lbs

Lamping:

• 18-Inch (3000K & 5 Selectable CCT): 1 X 12W 120V-277V integrated LED module; 880 lumens, 90 CRI, 3000K or 2700K/3000K/3500K/4000K/5000K Selectable CCT (included)


• 18-Inch (3 Selectable CCT): 1 X 12W 120V-277V integrated LED module; 1250 lumens, 90 CRI, 2700K/3500K/4000K Selectable CCT (included)


• 24-Inch: 1 X 16W 120V-277V integrated LED module; 1250 lumens, 90 CRI, 3000K or 2700K/3500K/4000K or 2700K/3000K/3500K/4000K/5000K Selectable CCT (included)


• 30-Inch: 1 X 20W 120V-277V integrated LED module; 1550 lumens, 90 CRI, 3000K or 2700K/3500K/4000K or 2700K/3000K/3500K/4000K/5000K Selectable CCT (included)


• 36-Inch: 1 X 24W 120V-277V integrated LED module; 1850 lumens, 90 CRI, 3000K (included)


• 48-Inch: 1 X 32W 120V-277V integrated LED module; 2240 lumens, 90 CRI, 3000K (included)

Ratings:

• Listing: cETLus Listed, Damp, ADA Compliant, Title 24 Compliant

Materials:

• Aluminum, PMMA acrylic
